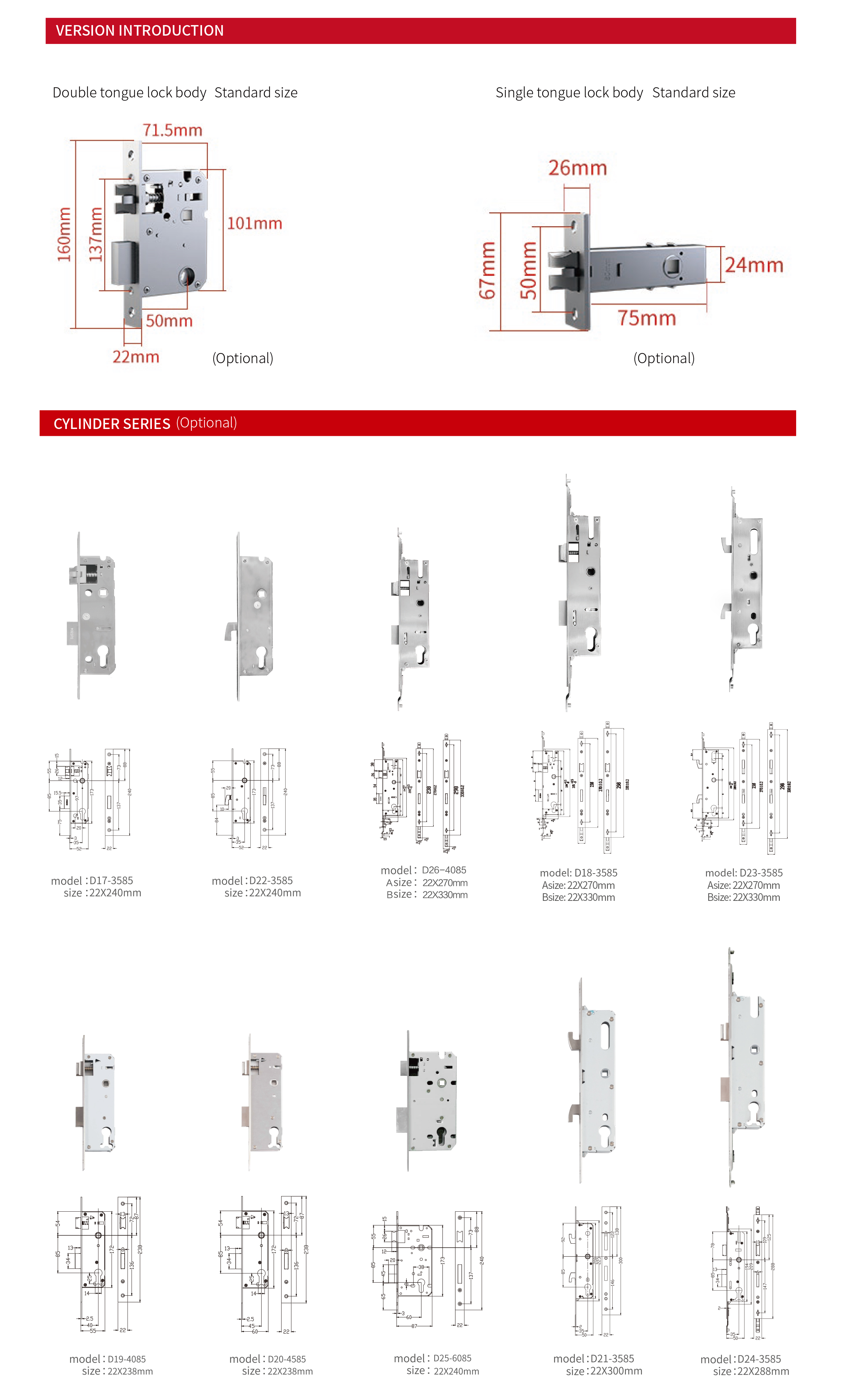

VERSION INTRODUCTION
|
VD09 STANDALONE VERSION INTRODUCTION
VD09 indoor smart lock is suitable for multiple application scenarios such as residential office.homestay and apartment.The stand-alone version is simple and practicalwithout remote control,fingerprint recognition,magnetic card unlocking,password unlocking,mechanical key plus USB emergency charging port,bearing free handle,Chinese and English switching,Convenient for different users; low battery alarm,trial and error alarm,record query, |
| 1 | Keymanagement | Can save 6-10 digits password,fingerprint and card mix 299 groups299 single password; 299 singlecard;100 single fingerprint (the actual capacity depends on the fingerprint module) |
| 2 | Dynamic password management | Two functions: one-time temporary password and time period password |
| 3 | Safe mode | Support single key and double key unlocking |
| 4 | Normally open setting | After opening the normally open mode.the lock has been kept in the normally open state.press the*key to perform a single lock Or enter the system to close the normally open mode |
| 5 | system initialization | Long press the initialization button to restore the system factory settings |
| 6 | time setting | The system has time memorywhich provides time basis for unlocking operation,which can be adjusted according to the current time |
| 7 | Voice prompts | Full voice navigation,simple operation |
| 8 | Attack protection | Enter the wrong key 5 times in a row,the system will automatically lock for 3 minutesand the system will enter the locked state.Can't unlock |
| 9 | Low pressure alarm | When the battery power is low,there will be a voice prompt afterunlocking:"The battery is dead" |
| 10 | Record query | Can provide the latest 1.000 unlocking operation records |
| 11 | Virtual password | Unlock password and enter 30 digits including the correct password at the end to unlock Effectively prevent others from watching and stealing passwords |
| 12 | Emergency door opening | When the batterv voltage is insufficient to drive the motorthe door can be opened by an external power supply or with a mechanical key. |
| 13 | Electronic lock | 13After turning on the electronic anti-lockfunction,only the administrator can open the lock,privacy function |

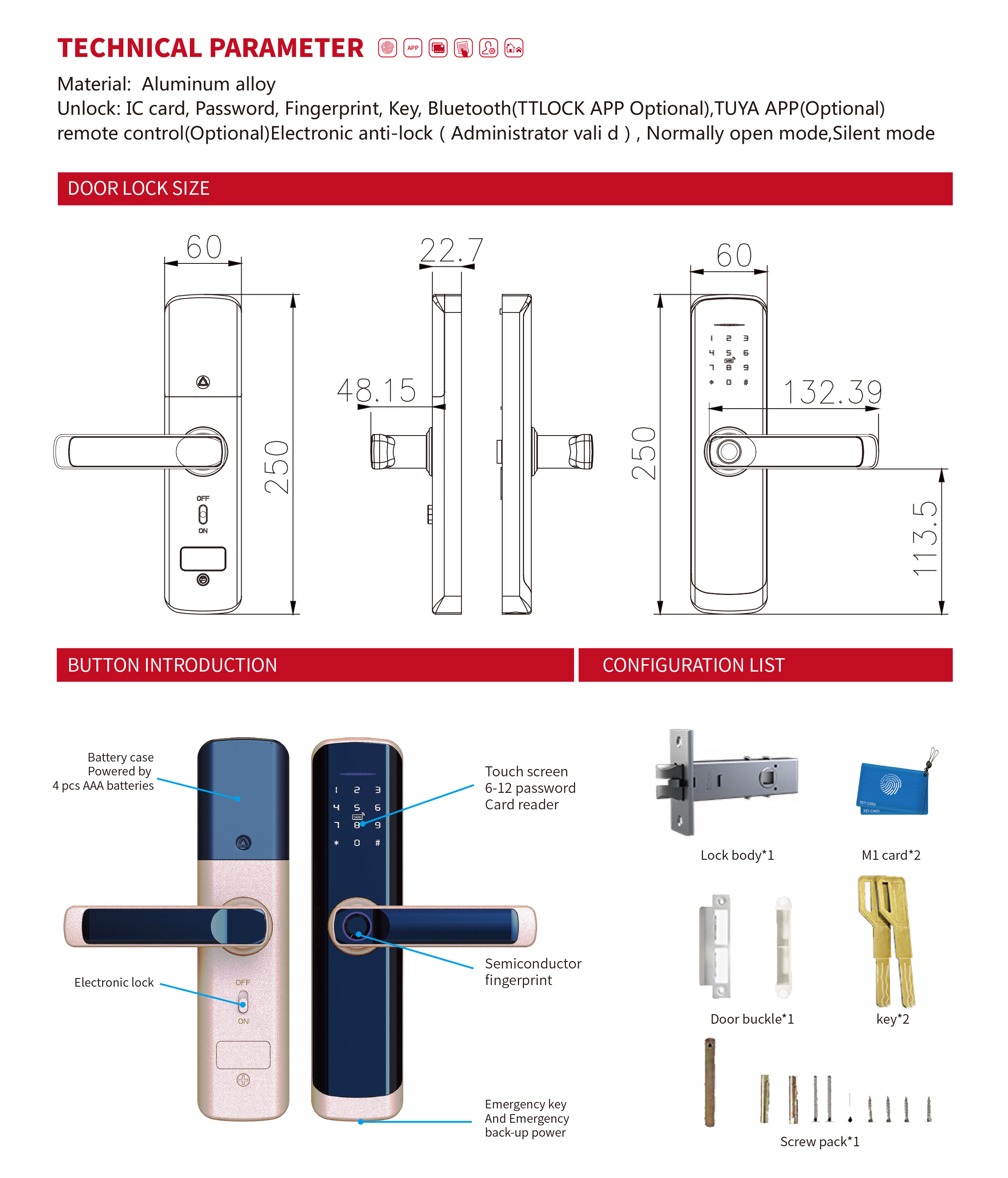

TECHNICAL PARAMETERS
| CATEGORY | DETAILED TECHNICAL PARAMETERS | REMARKS |
| Operating Voltage | INPUT:DC4.0v~7v |
Four 1.5V AAA alkaline batteries |
| Standby power supply voltage | USB micro interface power supply: DC5~7V | Power supply from power bank or 5V power adapter |
| Suitable fingerprint sensor type |
Semiconductor sensor |
|
| password keyboard |
Capacitive touch keyboard |
|
| Number of keys |
12 keys (0 ~9,# key to confirm, * key to cancel) |
|
| Language method | Chinese and English voice navigation | Chinese and English phonetics |
| Quiescent Current | ≤50uA | Under no working condition |
| Dynamic current | ≤300mA | Power consumption when opening the door after swiping the card |
| Drive output | direct | Working voltage 3V ~6V |
| Driving load capacity | ≤500mA | DC motor |
| Low voltage alarm voltage |
≤4.8V (the power supply voltage is lower than the standard80 ± 5% indicates that the battery is dead) |
Comply with national standard ga374-2001 Standard of electronic anti theft lock |
| Card type | Ml card | |
| Extensible interface | Remote control module,double fingerprint module ZigBee module,graffiti module | |
| working temperature | -25℃~+65℃ | |
| Record query |
It can provide the latest 1000 unlocking operation records |
|
| Number of open key |
A total of 299 sets of passwordfingerprint and card mix (100 single fingerprints)The first group(serial number 0) must be the management password. and the serial numbers 1~9 are the administrators.Serial numbers 10~299 are ordinarv users |
Adopt dynamic allocation (fingerprint capacity is subject to fingerprint module) |
|
|

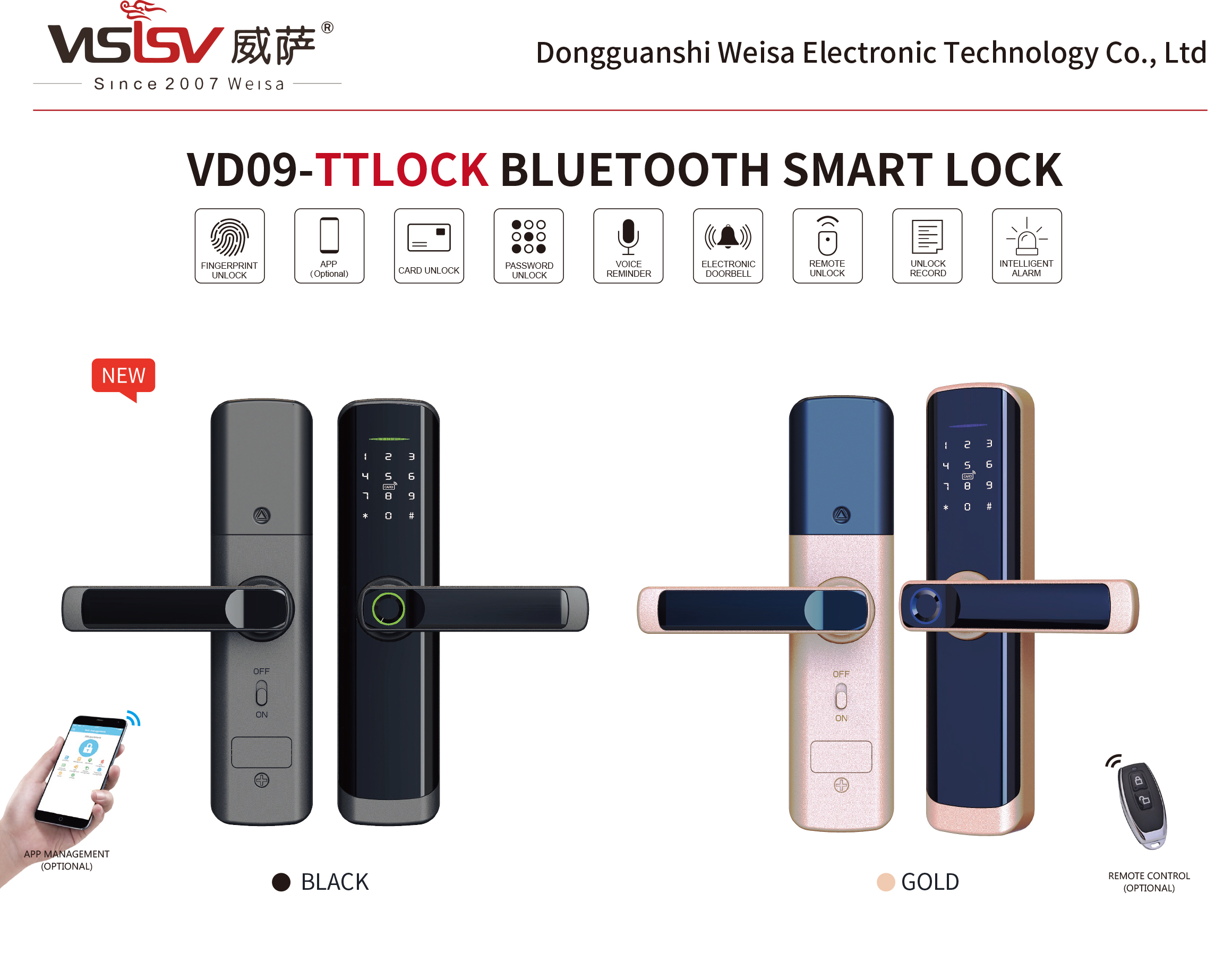

VDO9 TTOLOCK VERSION INTRODUCTION
|
TI LOCK TECHNICAL PARAMETER
| Bluetooth standard | Bluetooth 4.1BLE |
| Supported phones | Andriod43/10S7.0orabove |
| Power supply | 4 alkaline dry batteries |
| Low electricity alarm voltage | 4.8V |
| voltage range | 4.5~9V |
| stand-by current | 65 microamps on average |
| Working current | Less than 200 mA |
| Unlock time | ≈1.5 seconds |
| range of working temperature | -20-70 degrees Celsius |
| Button type | Capacitive touch buttons |
| Number of passwords | Custom and permanent password 150/other dynamic password 150 |
| Supported card types | MIFARE M1 card |
| Number of IC cards | 200 sheets |
| Unlocking method | APP,password,fingerprint,IC card,mechanical key |
| Fingerprint head type | Semiconductor fingerprint head |
| Fingerprint capacity | 120 pieces (adjusted according to the actual model used) |
| False acceptancerate(FAR) | <0.001% |
| Rejection rate(FRR) | <1.0% |
|
VDO9 TUYA APP VERSION INTRODUCTION  VDN9TUYA APP versia,singleversionar supporWiFuracking byarcing TUA dule.Inc ringemo.doe onering. rr essape viewrp, terrbemaragetert,do owerigrecord tue’y lempprery passworl and otner frclitns, rerrole coor ppe tr needs to ritiatearecucst to the doo’ock ardwarethcaporespondsand thc door is opeeccer bea.lowecdenied |
TUYA FUNCTION
| 1. Support WeChat Mini Program | 5. Local storage of unlocking records |
| 2. Mobile phone wifi unlocking function | 6. Real-time view of unlocking records |
| 3. Send temporary password remotely | 7.APP member management |
| 4. APP manages door locks in real time |
8. Remote authorized user unlock |
